VU+ Clone Receiver Support how do i set up my box with my motorised dish?

[gwd]

hi, i didnt get a manual with the box and i unsure how to set the motor config up, can anyone shed any light on it for me.



[DirtyDonki]

It's a good question that has a variety of answers.

Is your dish motorised already?
If yes has it already been aligned?
What motor is fitted?
Do you want to use USALS or Diseqc or Traditional 36V?



[gwd]

Yes it is . I had it running with my tm which was a single tuner. Twin new to me. I had it running diseq 1.2. But I can use us also. Not sure on setting this up. Looks more complex. Can't remember motor make



[Banny]

Motor make isn't an issue, do you only have one feed coming from your motorized dish?



[gwd]

At the moment but will be adding 2nd 1 shortly



[DirtyDonki]

Plug the cable into tuner A.

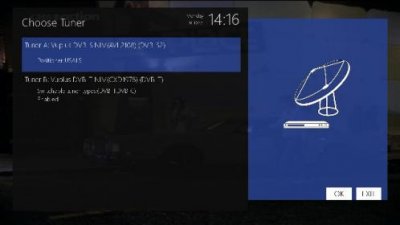

1. Go to Menu-Setup-Service Searching-Tuner Configuration
2. Select Tuner A

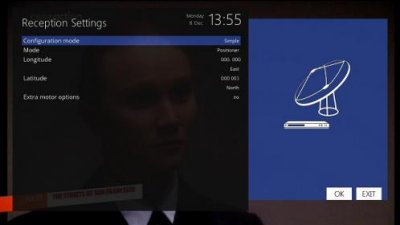

3. Set as shown BUT enter YOUR own Longditude & Latitude settings.

4. Click OK

Job Done.

You are now multisat setup again.
