HOW TO -Latest patch for solo v1/v2 only
Please read the steps few times before starting.You better do not disconnect the rs232 cable and small board.Use windows XP and DO not use a usb2serial it won't work
Step 1
Keep the box Powered OFF
Step 2 Updating of Secret chip
Please make update of the secret chip.Use renewaes solo software (secupd111230.exe) to update it.Connect RS232 small board with RS232 cable to computer COM port.Then run secupd111230.exe (please take a note of the right COM port) , and open solo scret.bin file and THEN Power ON soloreceiver.You will see update progress bar- Wait till it finish and then close it.Power OFF the box.
Step 3 Updating of Flash chip
Box remaining in OFF position.
Please make update flash chip.Connect RS232 small board with RS232 cable to computer COM port(if you had remove it by any reason). Start renewflash.exe, and choose upflash120227.bin file and hit the UPDATE button, THEN Power ON solo receiver. You will see update progress bar- Waittill it finish and then close it.Leave the box as it is.
Step 4 -Erase Flash chip.
Connect RS232 small board with RS232 cable to computer COM port(if you had remove it by any reason).Run ERASE126.exe and click ERASEbutton.Power OFF and then Power ON. Do NOT do reset of the box.
You will see update progress bar- Wait till it finish and then close it.Power OFF the box.
Those are all steps for the updates
Step 5 Loading CFE boot loader
Use cfe_solo_2.0 file -load it to a usb pen drive and then, make update.
Step 6 Flashing Image
Choose your Favourite image load it to the usb pen drive and then ,make update.


Those are the latest files, please post here any issues ,if any.

----------------
DO THIS :
1 -installing the soloboot.bin with UpdateAllFlash.exe
2 -installing the UPFLASH120227.bin with renewflash.exe
3 -Erase the memory with ERASE126.exe
4 -installing the Secret SOLO-120229.bin with secupd111230.exe
5 -installing the cfe_solo_2.0 with a usb pen drive
6 -installing a image XX with the usb pen drive


Attachments

Ten Below

SuperTux
Staff member
Admin
Moderator
Messages
8,794
Joined
Sep 9, 2014
Reaction score
7,361
Points
628
I have an RS232 cable without small board. It's a proper rs232-rs232 (non usb) cable will that be okay?
You will need the board as well mate.


Ziafat

Member
Messages
2
Joined
May 19, 2016
Reaction score
0
Points
1

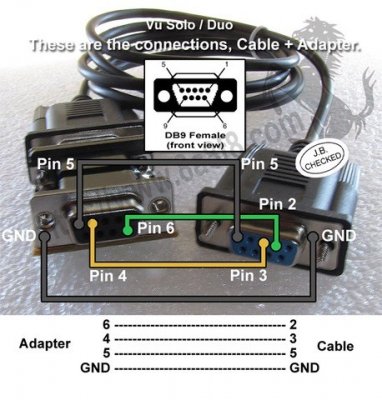

What is a RS232 small board could you possibly send me a picture of it please
