Very good job!
just a question:
when the decoder is in standby the lcd is off (black) ... to view the time and date in stand by what should I do???


DirtyDonki

I am the Nice One
Staff member
Admin
Joined
Sep 10, 2014
Messages
25,343
Likes
1,981
Points
728
Location
Middle England, Planet Earth.
Website
www.metalarmy.net
#2

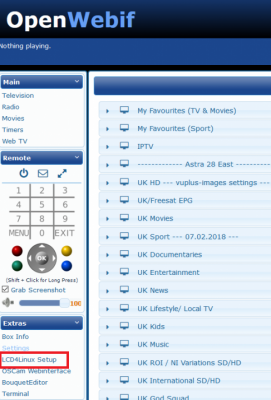

Open your favorite Browser on your PC and enter your Box IP in the navigation pane.
Scroll down to LCD4Linux & click the link
Of the 4 Radio Button options select the one next to Idle.

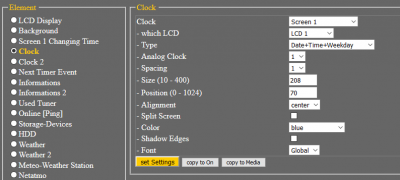

On the left select the clock radio button and set as shown on the right
Hit Set when done

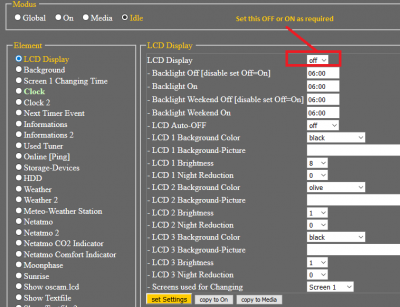

Finally, on the left select the LCD radio button and set as shown on the right
Hit Set when done
Click Save
Job done.


bob

V.I.P Member
Member
Joined
Feb 21, 2015
Messages
57
Likes
2
Points
8
#3
Followed the settings exactly but can't get the clock on standby. When i put the box in standby no clock but if i switch it on the clock comes on for a split second before channel comes up.

Ulitmo 4k with openatv6.2 all updates installed


bob

V.I.P Member
Member
Joined
Feb 21, 2015
Messages
57
Likes
2
Points
8
#5

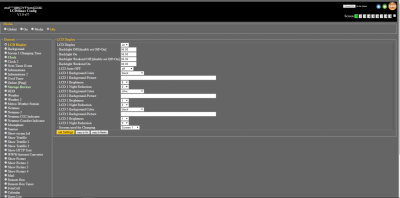

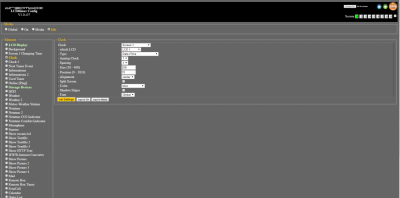

Here it is done toke two screen shots
