LNB Support Inverto IDLU-QUDL42-UNR2L-1PP LNB Question

[therealboss]

I have an Inverto IDLU-QUDL42-UNR2L-1PP LNB and I want to use it with my VU+ Ultimo4K but I'm not sure what setting to pick in the Tuner settings page.


I have never used a Unicable LNB before and this will be my first one so not too sure about setting it up. I'm open to any suggestions, this LNB is not listed in the drop-down menu so I guess the setting need to be entered in manually.

Also what would be your suggestions as to splitting the feed as my VU+ Ultimo4K has 2 x VU+ DVB-S2/S2X FBC Twin Tuner and 1 x DVB-C/T/T2 Tuner Module



Thanks for any advice or suggestions in advance.



[Ten Below]

I have an Inverto IDLU-QUDL42-UNR2L-1PP LNB and I want to use it with my VU+ Ultimo4K but I'm not sure what setting to pick in the Tuner settings page.


I have never used a Unicable LNB before and this will be my first one so not too sure about setting it up. I'm open to any suggestions, this LNB is not listed in the drop-down menu so I guess the setting need to be entered in manually.

Also what would be your suggestions as to splitting the feed as my VU+ Ultimo4K has 2 x VU+ DVB-S2/S2X FBC Twin Tuner and 1 x DVB-C/T/T2 Tuner Module



Thanks for any advice or suggestions in advance.

I had to google this as never had any experience of this lnb but hope this helps point you in the right direction.

Assuming you have only one signal wire connected to an FBC module:

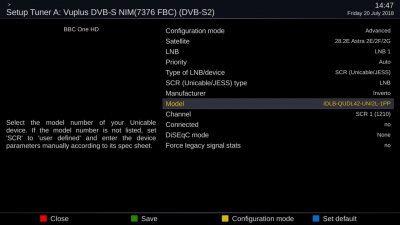

Tuner A:

Set as in picture



Tuner B-D.

Almost the same. Only differences are:

Connected = Yes

Connected to A

SCR must be separate for each tuner that accesses the LNB



As your LNB only has 4 SCR, set E-H as "FBC automatic".

This thread was found on the OpenPLi board.

https://forums.openpli.org/topic/61180-how-to-install-a-unicable-lnb-black-unicable-unicable-inverto-quad-lnb-model-idlu-qudl42-unr2l-1pp-on-a-vu-ultimo-4k/



[therealboss]

All sorted and working now as I need it.

thank you for your help
