New Model VU+ Zero

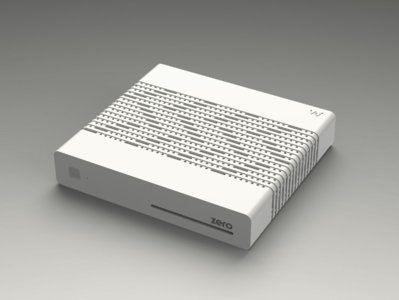

16734-28e9489434f5cd1db839ba8fab4a5984.jpg 16735-9cbb78602601f1284ba5445e45fb3f19.jpg 16736-fccfa42a211542685c04f361f60ef7ea.jpg

Price 119.-EUR

product description

Digital receiver for HDTV and radio programs.
Main features are strong 2K DMIPS processor VU + ZERO. Experience High Definition TV with your VU + ZERO.

? Opera browser
? HbbTV
? HDMI 1.4 connection
? DVB-S2 tuner
? External 12 V power supply

Technical highlights:

? 2K DMIPS processor
? DVB-S2 tuner
? 256MB Flash
? 512 MB DDR3 DRAM
? 1 x Smartcard-Reader (Xcrypt)
? 2 x USB
? 10/100 Mbit Ethernet Interface
? 1 x HDMI 1.4 video / audio output (digital)
? 1 x RCA video output (analog)
? 2 x Audio Output (L / R) RCA (analog)
? unlimited channel lists for TV / Radio
? EPG (electronic program guide) support
? Support of favorite lists (bouquets)
? OSD in many languages and skin-support
? expandable with plugins
? Automatic / manual channel search
? DiSEqC 1.0 / 1.1 / 1.2, USALS
? External 12V power supply
? Power switch

VU + ZERO Specifications:

? DVB-S2 tuner:
? Input Frequency Range 950 ... 2150 MHz
? Input level range - 65 dBm ...- 25 dBm
? Tuner Input Connector F connector
? Input impedance 75 ohms
? AFC capture range +/- 3.5 MHz
? Demodulation QPSK and 8PSK
? Viterbi and Reed-Solomon FEC
? Viterbiraten 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
? Roll-off Factor 35%
Video decoding:
? Video compression MPEG-2 / H.264 and MPEG-1 compatible
? Video Standard PAL G / 25 Hz, NTSC
? Aspect Ratio 4: 3/16: 9
? Letterbox for 4: 3 TV-Device

Analog output:
? Output Level L / R 0,5 Vss on 600 Ohm
? THD> 60 dB (1 kHz)
? Crosstalk <-65 dB

Video parameters:
? CVBS input level 1 Vpp +/- 0:25 dB at 75 Ohm

Ethernet:
? 100/10 MBit compatible interface

USB:
? USB 2.0 connection (2x)

LNB power and polarization DVB-S2 tuner:
? LNB Current 400mA max. Short-circuit protected
? LNB Voltage horizontal without load 19,5V17,6V at 400mA
? LNB Voltage vertical load without 14.5V 11.8V at 400mA
? LNB is switched off in standby mode

Control of the satellite position:
? DiSEqC 1.0 / 1.1 / 1.2 and USALS - Rotor Control

power consumption:
? <13W (in operation, with LNB)
? <12W (in operation, without LNB)
? <0.5W (Deep-Standby-Mode)

Input:
? External power supply:
? Entrance:
? 110-240V AC / 50-60Hz / 1,0A
? Exit:
? 12V = / 3,5A

General:
? Ambient temperature + 15 ? C ... + 35 ? C
? Humidity <80%
? Dimensions (W x D x H): 211 mm x 185 mm x 40 mm

Scope of delivery:
? Receiver (VU + ZERO)
? Remote control
? Batteries
? cable for analog A / V outputs (3.5 mm jack)
? external IR sensor
? External power supply
? User manual​
